First of all, many thanks to Ernie Alston for such a great product! Just amazing!

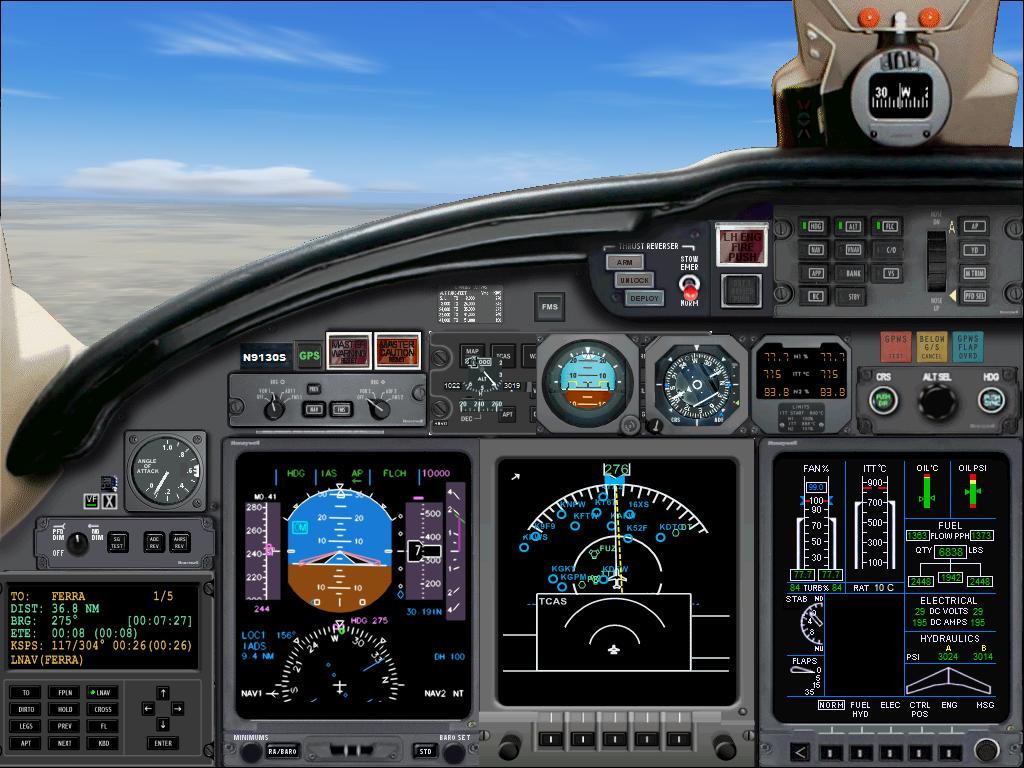

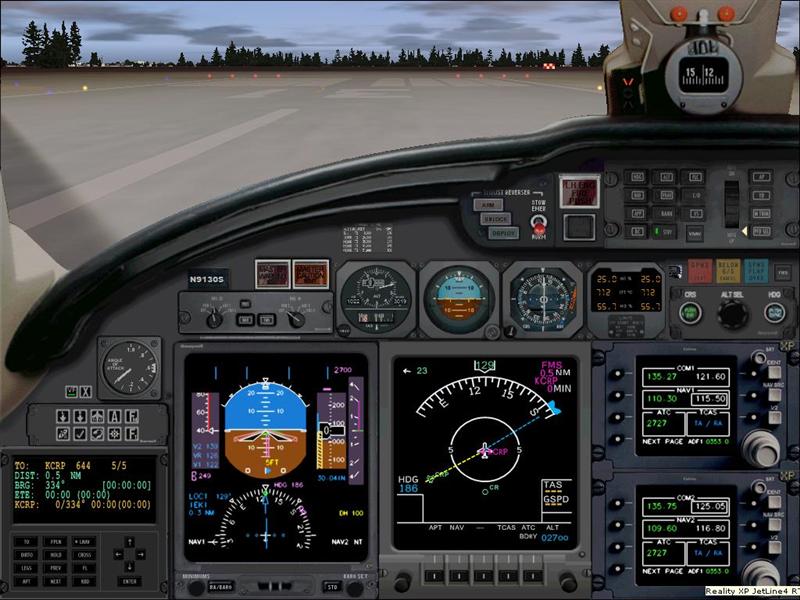

I am hoping to get assistance on an issue I have with the P1000 MFD as installed on the Eaglesoft Citation X. Most of the features work, including the plan route, airport and VOR display, TCAS, and heading bug. However, I am unable to see some of the displayed data or use the function buttons. I've attached a screenshot at the bottom of this post as an example. I even tested using the Citation X panel template provided on the ISGSIM website, but it produced the same results.
Any assistance in fixing this problem would be greatly appreciated!
I am running FS9 and below is my panel.cfg info if this helps:
// This Panel.cfg file created by FS Panel Studio panel editor utility -
http://www.fspanelstudio.com
// Built Thursday, April 24, 2008 at 01:19 FSPS Build:20339
[Window Titles]
Window00=Cockpit View
Window01=Left Tilt Panel
Window02=Right Tilt Panel
Window03=Console
Window04=FMC Trim
Window05=APU
Window06=Citation X SimIcon
Window07=Citation X SimIcons VC
Window08=Reality XP RTU
Window09=FMS
Window10=mfdcntrl
Window11=mcdcntrl
[VIEWS]
VIEW_FORWARD_WINDOWS=0,20,25,40,50,60,70,80,90,100,4001,4002,4003,4004,16201,16203
VIEW_FORWARD_ZOOM=0.800
VIEW_FORWARD_DIR=4.800, 0.000, 0.000
VIEW_FORWARD_RIGHT_ZOOM=0.700
VIEW_FORWARD_RIGHT_EYE=0.000, 0.000, 0.000
VIEW_FORWARD_RIGHT_DIR=7.000, 0.000, 45.000
VIEW_RIGHT_ZOOM=0.700
VIEW_RIGHT_EYE=0.000, 0.000, 0.300
VIEW_REAR_RIGHT_ZOOM=0.700
VIEW_REAR_RIGHT_EYE=0.000, 0.000, 0.000
VIEW_REAR_ZOOM=0.700
VIEW_REAR_EYE=0.100, 0.000, 0.200
VIEW_REAR_LEFT_ZOOM=0.700
VIEW_REAR_LEFT_EYE=-0.200, 0.000, 0.100
VIEW_LEFT_ZOOM=0.700
VIEW_LEFT_EYE=0.000, 0.000, 0.200
VIEW_FORWARD_LEFT_ZOOM=0.700
VIEW_FORWARD_LEFT_EYE=0.000, 0.000, 0.000
VIEW_FORWARD_LEFT_DIR=8.500, 0.000, 315.000
VIEW_FORWARD_UP_ZOOM=0.700
VIEW_FORWARD_UP_DIR=-6.000, 0.000, 0.000
//--------------------------------------------------------
[Window00]
size_mm=1024
window_size_ratio=1.000
position=7
visible=1
ident=0
window_size= 1.000, 1.000
window_pos= 0.000, 0.000
gauge00=escxvariavles!escxvariavles, 114,704,100,50
gauge01=escxlogic!escxlogic, 185,405,24,7
gauge02=escxeicas!escxeicas, 756,438,270,347
gauge03=cxcaws1!cxcaws1, 826,594,77,6
gauge04=cxcaws2!cxcaws2, 826,600,77,6
gauge05=cxcaws3!cxcaws3, 826,606,77,6
gauge06=cxcaws4!cxcaws4, 826,612,77,6
gauge07=escxautopilot!escxautopilot, 773,205,251,113
gauge08=escxmaster!escxmaster, 325,332,97,38
gauge09=escxmode!escxmode, 4,685,211,82
gauge10=escxtrim!escxtrim, 783,602,20,8
gauge11=escxstbyeng!escxstbyeng, 750,335,103,99
gauge12=escxaoa!escxaoa, 125,430,82,82
gauge13=escxcompass!escxcompass, 848,75,107,45
gauge14=escxfastslow!escxfastslow, 797, 100 ,14,38
gauge15=escxstbyadi!escxstbyadi, 536,334,105,103
gauge16=escxlglare!escxlglare, 592,217,180,98
gauge17=escxstbyaltim!escxstbyaltim, 430,334,103,99
gauge18=escxappopup!escxappopup, 856,366,165,70
gauge19=escxstbyhsi!escxstbyhsi, 643,334,103,99
gauge20=cxcaws5!cxcaws5, 826,618,77,6
gauge21=cxcaws6!cxcaws6, 826,624,77,6
gauge22=cxcaws7!cxcaws7, 826,630,77,6
gauge23=cxcaws8!cxcaws8, 826,636,77,6
gauge24=cxcaws9!cxcaws9, 826,642,77,6
gauge25=cxcaws10!cxcaws10, 826,648,77,6
gauge26=cxcaws11!cxcaws11, 826,654,77,6
gauge27=cxcaws12!cxcaws12, 826,660,77,6
gauge28=cxcaws13!cxcaws13, 826,666,77,6
gauge29=cxcaws14!cxcaws14, 826,672,77,6
gauge30=cxcaws15!cxcaws15, 826,678,77,6
gauge31=cxcaws16!cxcaws16, 826,684,77,6
gauge32=cxcaws17!cxcaws17, 826,690,77,6
gauge33=cxsimicon!cxsimicon_X2d, 101,493,17,17
gauge34=escxvf!escxvf, 83,493,17,17
gauge35=escxaudio!escxaudio, 3,570,212,114
gauge36=escxcbpanel!escxcbpanel, 2,346,116,142
gauge37=escxmisc1!escxmisc1, 32,515,186,56
gauge38=cxsimicon!Tail_Number, 239,342,54,28
gauge39=escxastag!escxastag, 433,269,100,58
gauge40=RealityXP_JetLine4!EADI, 211,430,284,320
gauge41=RealityXP_JetLine4!GPWS_TEST, 880,331,32,32
gauge42=RealityXP_JetLine4!GPWS_GS, 916,331,32,32
gauge43=RealityXP_JetLine4!GPWS_FLAPS, 952,331,32,32
gauge44=RealityXP_JetLine4!IC_RTU1, 101,475,17,17
// --gauge45=RealityXP_FL530XP!DEV_SELECT_SWITCH, 294,340,30,30--
gauge45=isg1!P1000_MFD, 485,438,274,328,ESDG_Citation_X
gauge46=isg1!FMS_OPEN, 533,291,33,32
gauge47=ISG1_TCAS!Logic, 1,1,1,1
gauge48=isg1!MCU_OPEN, 376,292,43,32
//--------------------------------------------------------
[Window01]
Background_color=0,0,0
size_mm=1024,768
window_size_ratio=1.000
position=0
visible=1
ident=25
window_size= 1.000, 1.000
window_pos= 0.000, 0.000
gauge00=escxltiltclose!escxltiltclose, 1,24,1012,137
gauge01=escxelectric!escxelectric, 635,5,375,221
gauge02=escxfuel!escxfuel, 213,5,293,220
gauge03=escxo2!escxo2, 16,2,149,223
gauge04=escxgear!escxgear, 511,7,119,223
gauge05=escxrotartest!escxrotartest, 10,231,98,98
//--------------------------------------------------------
[Window02]
Background_color=0,0,0
size_mm=1024,768
window_size_ratio=1.000
position=0
visible=1
ident=40
window_size= 1.000, 1.000
window_pos= 0.000, 0.000
gauge00=escxrtiltclose!escxrtiltclose, 10,20,1006,143
gauge01=escxhyd!escxhyd, 232,6,228,221
gauge02=escxpressure!escxpressure, 470,6,271,222
gauge03=escxaircond!escxaircond, 779,6,239,221
gauge04=escxantiice!escxantiice, 8,7,215,217
gauge05=escxpressureind!escxpressureind, 794,230,226,103
//--------------------------------------------------------
[Window03]
size_mm=768,768
window_size_ratio=1.000
position=2
visible=1
ident=50
window_size= 0.750, 1.000
window_pos= 0.250, 0.000
gauge00=escxrmu2!escxrmu2, 552,7,216,262
gauge01=escxconsole!escxconsole, 184,273,584
gauge02=escxstbyradio!escxstbyradio, 400,35,149,199
gauge03=escxconsoleclose!escxconsoleclose, 283,285,357,399
gauge04=RealityXP_JetLine4!RTU, 185,7,210,132
gauge05=RealityXP_JetLine4!RTU2, 185,139,211,132
//--------------------------------------------------------
[Window04]
file=..\Panel\FMC Trim.bmp
size_mm=768,768
window_size_ratio=1.000
position=2
visible=1
ident=60
window_size= 0.750, 1.000
window_pos= 0.000, 0.000
gauge00=escxfmcclose!escxfmcclose, 413,284,335,247
gauge01=escxfmc!escxfmc, 325,137,220,288
gauge02=escxapsetright!escxapsetright, 577,433,162,78
gauge03=escxapsetleft!escxapsetleft, 356,433,162,78
gauge04=escxfmc2!escxfmc2, 545,137,220,288
gauge05=escxpedtrim!escxpedtrim, 325,512,440,255
//--------------------------------------------------------
[Window05]
size_mm=1024,768
window_size_ratio=1.000
position=0
visible=0
ident=70
window_size= 1.000, 1.000
window_pos= 0.000, 0.000
gauge00=escxapuclose!escxapuclose, 865,418,138,293
gauge01=escxapu!escxapu, 860,491,148,246
gauge02=escxapulights!escxapulights, 906,504,53,44
gauge03=escxapumisc!escxapumisc, 854,309,159,172
//--------------------------------------------------------
[Window06]
Background_color=0,0,0
size_mm=188,56
window_size_ratio=1.000
position=0
visible=0
ident=90
window_size= 0.184, 0.074
window_pos= 0.029, 0.670
gauge00=cxsimicon!cxsimicon2d, 0,0,188,56
//--------------------------------------------------------
[Window07]
Background_color=8,8,8
size_mm=189,58
window_size_ratio=1.000
position=0
visible=0
ident=100
window_size= 0.189, 0.090
window_pos= 0.000, 0.000
gauge00=cxsimicon!cxsimicon3d, 0,0,189,58
//--------------------------------------------------------
[Window08]
Background_color=0,0,0
size_mm=256,320
window_size_ratio=1.000
position=7
visible=0
ident=16201
window_size= 0.260, 0.432
window_pos= 0.740, 0.565
gauge00=RealityXP_JetLine4!RTU, 0,0,256,160
gauge01=RealityXP_JetLine4!RTU2, 0,160,256,160
//--------------------------------------------------------
[Window09]
Background_color=0,0,0
size_mm=312,245
window_size_ratio=1.000
position=0
visible=1
ident=4004
window_size= 0.500, 0.500
window_pos= 0.000, 0.000
gauge00=isg1!GNSXLS_LM, 0,0,312,245
//--------------------------------------------------------
[Window10]
Background_color=0,0,0
size_mm=293,104
window_size_ratio=1.000
position=0
visible=1
ident=4003
window_size= 0.500, 0.500
window_pos= 0.000, 0.000
gauge00=isg1!P1000_MFD_CNTR, 0,0,293,104
//--------------------------------------------------------
[Window11]
Background_color=0,0,0
size_mm=223,195
window_size_ratio=1.000
position=0
visible=1
ident=4001
window_size= 0.500, 0.500
window_pos= 0.000, 0.000
gauge00=isg1!MCU_LM, 0,0,223,195
//--------------------------------------------------------
[Vcockpit01]
Background_color=0,0,0
size_mm=512,512
visible=0
pixel_size=1024,1024
texture=$L_main
gauge00=escxmaster!escxmaster, 216,327,41,16
gauge01=escxstbyadi!escxstbyadi, 305,328,44,44
gauge02=escxstbyaltim!escxstbyaltim, 260,328,44,43
gauge03=escxmode!escxmode, 80,476,90,34
gauge04=escxaoa!escxaoa, 130,368,36,35
gauge05=escxeicas!escxeicas, 397,372,114,145
gauge06=escxstbyeng!escxstbyeng, 395,328,42,43
gauge07=escxvariavles!escxvariavles, 262,314,8,8
gauge08=escxstbyhsi!escxstbyhsi, 350,328,43,43
gauge09=escxelectric!escxelectric, 363,4,140,86
gauge10=escxo2!escxo2, 39,3,57,90
gauge11=escxfuel!escxfuel, 127,3,117,88
gauge12=cxsimicon!cxsimicon_X3d, 120,394,9,9
gauge13=escxvf!escxvf, 111,394,9,9
gauge14=escxaudio!escxaudio, 80, 427 ,90,49
gauge15=escxcbpanel!escxcbpanel, 44,467,33,43
gauge16=cxsimicon!Tail_Number, 177,332,26,12
gauge17=cxcaws1!cxcaws1, 427,437,32,3
gauge18=cxcaws2!cxcaws2, 427,440,32,3
gauge19=cxcaws3!cxcaws3, 427,443,32,3
gauge20=cxcaws4!cxcaws4, 427,446,32,3
gauge21=cxcaws5!cxcaws5, 427,449,32,3
gauge22=cxcaws6!cxcaws6, 427,452,32,3
gauge23=cxcaws7!cxcaws7, 427,455,32,3
gauge24=cxcaws8!cxcaws8, 427,458,32,3
gauge25=cxcaws9!cxcaws9, 427,461,32,3
gauge26=cxcaws10!cxcaws10, 427,464,32,3
gauge27=cxcaws11!cxcaws11, 427,467,32,3
gauge28=cxcaws12!cxcaws12, 427,470,32,3
gauge29=cxcaws13!cxcaws13, 427,473,32,3
gauge30=cxcaws14!cxcaws14, 427,476,32,3
gauge31=escxastag!escxastag, 262,298,42,28
gauge32=RealityXP_JetLine4!EADI, 166,369,120,137
gauge33=isg1!P1000_MFD, 280,369,120,137,vc
gauge34=RealityXP_JetLine4!IC_RTU1, 120,385,9,9
gauge35=RealityXP_WX500!IC_RDR, 111,385,9,9
gauge36=RealityXP_JetLine4!GPWS_TEST, 444,326,15,15
gauge37=RealityXP_JetLine4!GPWS_GS, 461,326,15,15
gauge38=RealityXP_JetLine4!GPWS_FLAPS, 478,326,15,15
//--------------------------------------------------------
[Vcockpit02]
Background_color=0,0,0
size_mm=512,512
visible=0
pixel_size=1024,1024
texture=$R_Main
gauge00=escxapumisc!escxapumisc, 315,341,41,41
gauge01=escxmasterright!escxmasterright, 186,293,49,19
gauge02=escxmode!escxmode, 309,468,107,42
gauge03=escxpressureind!escxpressureind, 420,475,74,32
gauge04=escxaircond!escxaircond, 409,3,88,86
gauge05=escxantiice!escxantiice, 63,5,85,85
gauge06=escxapu!escxapu, 437,96,48,78
gauge07=escxapulights!escxapulights, 452,101,16,12
gauge08=escxhyd!escxhyd, 166,4,95,86
gauge09=escxpressure!escxpressure, 280,4,109,86
gauge10=escxvcgear!escxvcgear, 10,3,44,88
gauge11=cxsimicon!Tail_Number, 256,299,26,12
gauge12=RealityXP_JetLine4!EADI, 171,341,138,155
gauge13=isg1!P1000_MFD, 39,341,138,155,vc2
//--------------------------------------------------------
[Vcockpit03]
Background_color=0,0,0
size_mm=512,512
visible=0
pixel_size=1024,1024
texture=$Ped_FMC
gauge00=escxrmu2!escxrmu2, 125,1,72,86
gauge01=escxstbyradio!escxstbyradio, 73,11,51,72
gauge02=escxfmc!escxfmc, 287,4,110,144
gauge03=escxfmc2!escxfmc2, 397,4,110,144
gauge04=escxcompass!escxcompass, 383,419,27,17
gauge05=escxlglare!escxlglare, 284,472,65,34
gauge06=escxrglare!escxrglare, 443,473,62,35
gauge07=escxfastslow!escxfastslow, 358,419,6,18
gauge08=escxpedtrim!escxpedtrim, 7,404,184,108
gauge09=escxautopilot!escxautopilot, 352,466,87,41
gauge10=escxconsolevc!escxconsolevc, 1,87,197,159
gauge11=RealityXP_JetLine4!RTU2, 1,1,72,43
gauge12=RealityXP_JetLine4!RTU2, 1, 44 ,72,43
[Color]
Day=255,255,255
Night=30,30,30
Luminous=64,64,64
[Default View]
X=0
Y=0
SIZE_X=8192
SIZE_Y=2814
