Fsbuild-2 Flight Planner

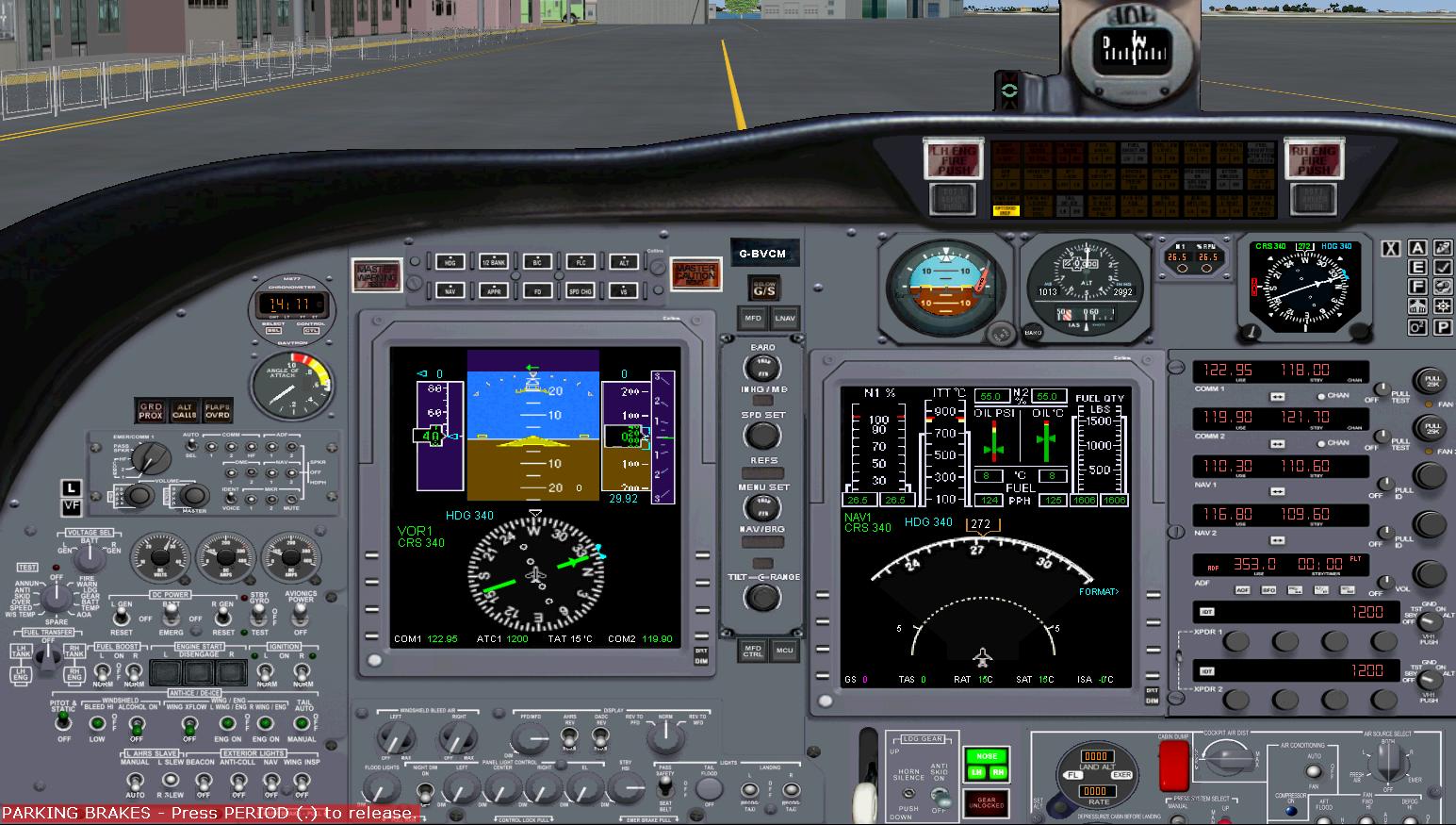

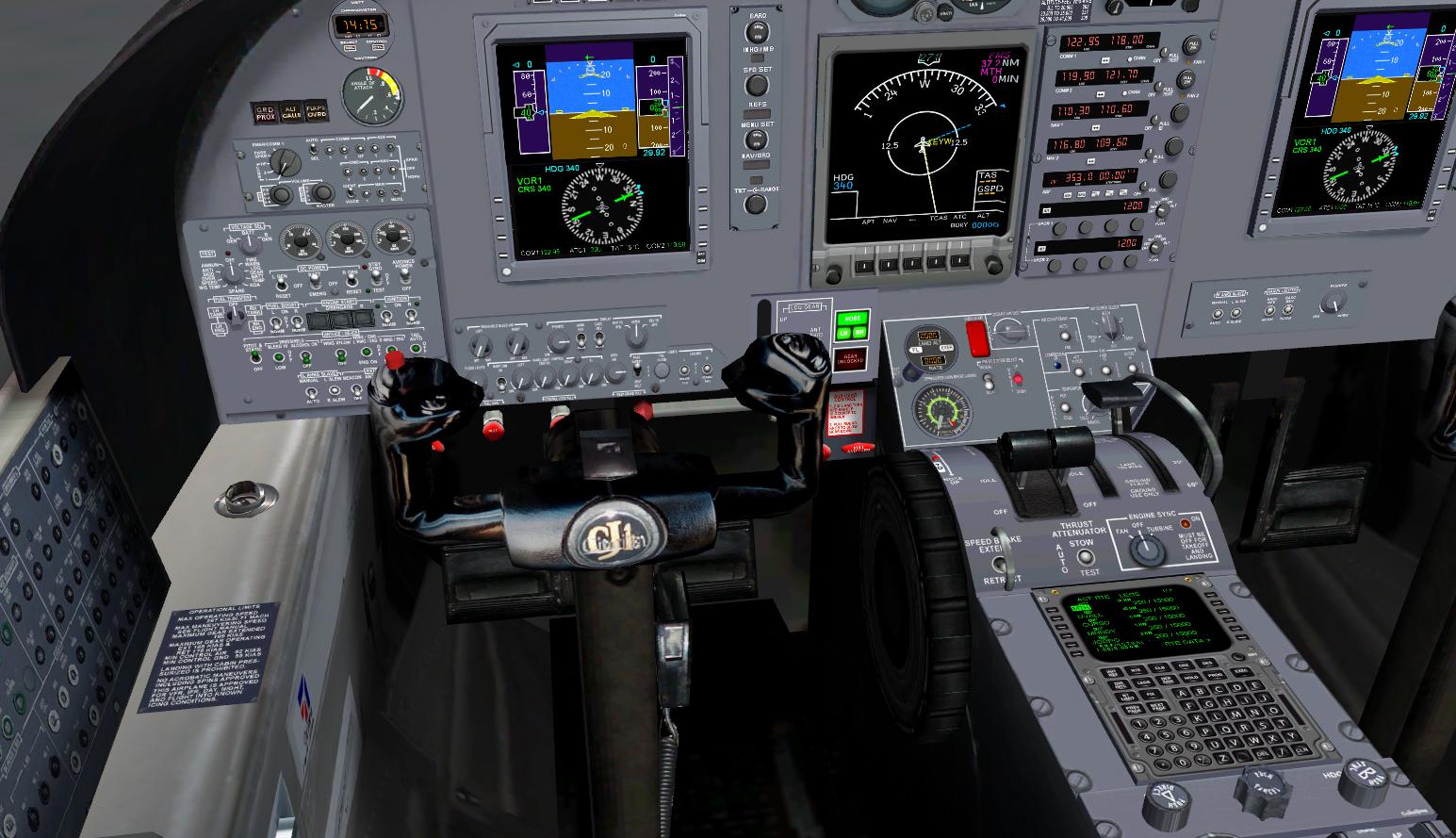

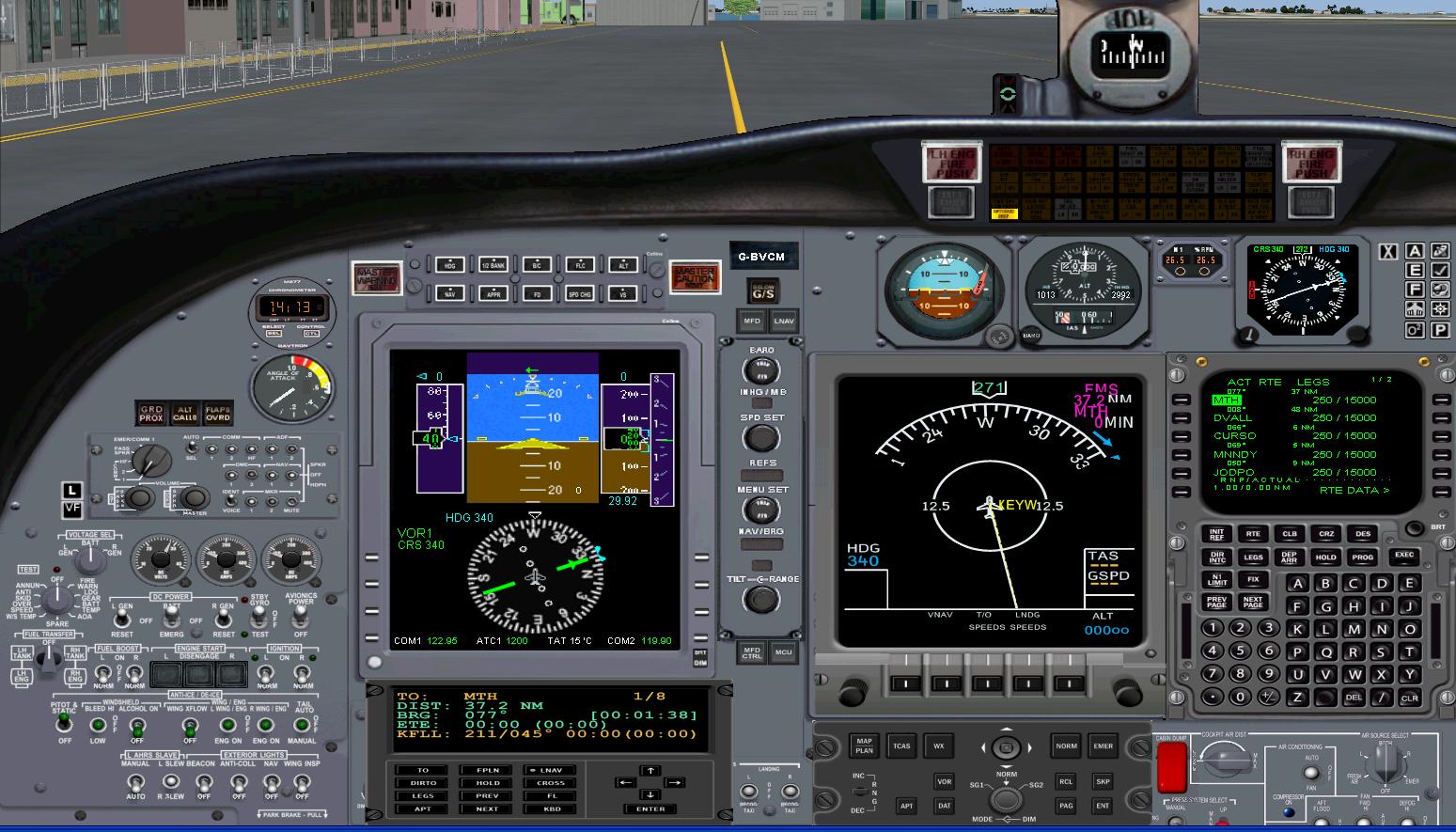

Here is my new Eaglesoft CJ1 Panel. All ISG gauges are pop up windows, in the 2D panel. Pics at the bottom


// This Panel.cfg file created by FS Panel Studio panel editor utility - http://www.fspanelstudio.com
// Built Saturday, May 17, 2008 at 08:26 FSPS Build:18222

[Window Titles]
Window00=Default
Window01=Main View
Window02=AP
Window03=Electrical
Window04=FMC
Window05=Throttle Quad
Window06=Oxygen
Window07=Pressure
Window08=GPS
Window09=Landing View
Window10=PFD/MFD pop up
Window11=P1000 MFD
Window12=P1000_MFD_CNTR
Window13=MCU_LM


[VIEWS]
VIEW_FORWARD_WINDOWS=123,0,80,10,40,30,50,70,90,2,110,4002,4003,4001

VIEW_FORWARD_ZOOM=0.800
VIEW_FORWARD_DIR=4.800, 0.000, 0.000

VIEW_FORWARD_RIGHT_ZOOM=0.700
VIEW_FORWARD_RIGHT_EYE=0.000, 0.000, 0.000
VIEW_FORWARD_RIGHT_DIR=7.000, 0.000, 45.000

VIEW_RIGHT_ZOOM=0.700
VIEW_RIGHT_EYE=0.000, 0.000, 0.300

VIEW_REAR_RIGHT_ZOOM=0.700
VIEW_REAR_RIGHT_EYE=0.000, 0.000, 0.000

VIEW_REAR_ZOOM=0.700
VIEW_REAR_EYE=0.250, 0.000, 0.200

VIEW_REAR_LEFT_ZOOM=0.700
VIEW_REAR_LEFT_EYE=-0.165, 0.000, 0.100

VIEW_LEFT_ZOOM=0.700
VIEW_LEFT_EYE=-0.200, 0.000, 0.200

VIEW_FORWARD_LEFT_ZOOM=0.700
VIEW_FORWARD_LEFT_EYE=0.000, 0.000, 0.000
VIEW_FORWARD_LEFT_DIR=8.500, 0.000, 325.000

VIEW_FORWARD_UP_ZOOM=0.900
VIEW_FORWARD_UP_DIR=-6.000, 0.000, 0.000



//--------------------------------------------------------
[Window00]
Background_color=0,0,0
size_mm=1280,960
window_size_ratio=1.000
position=7
visible=1
ident=123
window_size= 1.000, 1.000
window_pos= 0.000, 0.000



//--------------------------------------------------------
[Window01]
size_mm=1280,960
window_size_ratio=1.000
position=7
visible=1
ident=0
window_size= 1.000, 1.000
window_pos= 0.000, 0.000

gauge00=escj1variables!escj1variables, 18,511,41,14
gauge01=escj1pfdclose!escj1pfdclose, 367,477,211,280
gauge02=escj1pfdtop!escj1pfdtop, 353,438,270,195
gauge03=escj1stbyadi!escj1stbyadi, 774,349,120,119
gauge04=escj1stbyaltim!escj1stbyaltim, 897,349,115,114
gauge05=escj1pfdlower!escj1pfdlower, 319,633,315,198
gauge06=escj1mfdlow!escj1mfdlow, 730,634,275,188
gauge07=escj1mfd!escj1mfd, 726,492,294,141
gauge08=escj1buttonsr!escj1buttonsr, 1001,712,19,128
gauge09=escj1logic!escj1logic, 17,532,20,20
gauge10=escj1radio!escj1radio, 1023,469,272,382
gauge11=escj1stbyhsi!escj1stbyhsi, 1086,349,117,113
gauge12=escj1aoa!escj1aoa, 223,465,82,83
gauge13=escj1electric!escj1electric, 8,643,304,319
gauge14=escj1pfdset!escj1pfdset, 635, 452 ,77,316
gauge15=escj1N1!escj1N1, 1015,350,68,50
gauge16=escj1ap!escj1ap, 361,362,232,62
gauge17=escj1gpws!escj1gpws, 126,517,88,30
gauge18=escj1gpwsgs!escj1gpwsgs, 660,392,29,28
gauge19=escj1cbpanel!escj1cbpanel, 93,369,97,70
gauge20=escj1annunc!escj1annunc, 809,223,373,120
gauge21=escj1clock!escj1clock, 224,388,80,81
gauge22=escj1audio!escj1audio, 83,552,226,92
gauge23=escj1lower!escj1lower, 314,829,415,132
gauge24=escj1_Tail_Number!Tail_Number, 645,354,61,31
gauge25=escj1_compass!escj1_compass, 939,129,119,60
gauge26=escj1masterwarn!escj1masterwarn, 314,374,47,37
gauge27=escj1mastercaut!escj1mastercaut, 592,373,47,37
gauge28=escj1gear!escj1gear, 749,855,148,113
gauge29=escj1press!escj1press, 903,858,365,191
gauge30=escj1fastslow!escj1fastslow, 881,184,14,38
gauge31=escj1vf!escj1vf, 62,623,21,21
gauge32=escj1landview!escj1landview, 62,602,21,21
gauge33=escj1simicons!escj1simicons, 1208,354,66,104
gauge34=isg1!P1000_MFD_CNTR_OPEN, 650,767,29,27
gauge35=isg1!LNAV, 678,423,29,28
gauge36=isg1!MCU_OPEN, 678,767,29,27
gauge37=isg1!P1000_MFD_OPEN, 650,423,29,28
gauge38=ISG1_TCAS!Logic, 1,1,1,1


//--------------------------------------------------------
[Window02]
Background_color=0,0,0
size_mm=430,400
window_size_ratio=1.000
position=0
visible=0
ident=80
window_size= 0.320, 0.370
window_pos= 0.690, 0.640

gauge00=escj1apcclose!escj1apcclose, 34,44,376,334
gauge01=escj1ap!escj1ap, 6,0,424,111
gauge02=escj1apcrs!escj1apcrs, 0,112,429,286


//--------------------------------------------------------
[Window03]
size_mm=800,460
window_size_ratio=1.000
position=0
visible=0
ident=10
window_size= 0.720, 0.620
window_pos= 0.000, 0.390

gauge00=escj1elecclose!escj1elecclose, 7,39,497,380
gauge01=escj1electric!escj1electric, 1,122,366,339
gauge02=escj1audio!escj1audio, 32,5,325,116
gauge03=escj1lower!escj1lower, 368,340,431,121


//--------------------------------------------------------
[Window04]
Background_color=0,0,0
size_mm=312,481
window_size_ratio=1.000
position=0
visible=0
ident=40
window_size= 0.200, 0.397
window_pos= 0.800, 0.490

gauge00=isg1!SMITHS_FMS, -1,0,312,481


//--------------------------------------------------------
[Window05]
Background_color=0,0,0
size_mm=359,400
window_size_ratio=1.000
position=0
visible=0
ident=30
window_size= 0.280, 0.390
window_pos= 0.720, 0.620

gauge00=escj1throttleclose!escj1throttleclose, 30,31,303,343
gauge01=escj1_tquad!escj1_tquad, 0,0,358


//--------------------------------------------------------
[Window06]
Background_color=107,109,116
size_mm=100,198
window_size_ratio=1.000
position=0
visible=0
ident=50
window_size= 0.190, 0.495
window_pos= 0.811, 0.510

gauge00=escj1o2close!escj1o2close, 9,9,78,128
gauge01=escj1o2!escj1o2, 0,47,100,150
gauge02=escj1_Hobbs!hobbs, 0,0,100,47


//--------------------------------------------------------
[Window07]
size_mm=795,419
window_size_ratio=1.000
position=0
visible=0
ident=70
window_size= 0.680, 0.465
window_pos= 0.325, 0.554

gauge00=escj1pressclose!escj1pressclose, 10,10,740,345
gauge01=escj1press!escj1press, 0,1,794


//--------------------------------------------------------
[Window08]
Background_color=0,0,0
size_mm=457,379
window_size_ratio=1.000
position=0
visible=0
ident=90
window_size= 0.490, 0.470
window_pos= 0.520, 0.540

gauge00=escj1gpsclose!escj1gpsclose, 41,48,305,201
gauge01=fs9gps!gps_500, 2,0,456,378


//--------------------------------------------------------
[Window09]
size_mm=1280,960
window_size_ratio=1.000
position=7
visible=1
ident=2
window_size= 1.000, 1.000
window_pos= 0.000, 0.000

gauge00=escj1pfdtop!escj1pfdtop, 353,539,270,195
gauge01=escj1stbyadi!escj1stbyadi, 774,450,120,119
gauge02=escj1stbyaltim!escj1stbyaltim, 897,450,115,114
gauge03=escj1pfdlower!escj1pfdlower, 319,734,315,198
gauge04=escj1mfdlow!escj1mfdlow, 730,735,275,188
gauge05=escj1mfd!escj1mfd, 726,593,294,141
gauge06=escj1buttonsr!escj1buttonsr, 1002,808,19,128
gauge07=escj1radio!escj1radio, 1023,570,272,382
gauge08=escj1stbyhsi!escj1stbyhsi, 1086,450,117,113
gauge09=escj1aoa!escj1aoa, 223,566,82,83
gauge10=escj1electric!escj1electric, 8,744,304,319
gauge11=escj1pfdset!escj1pfdset, 635,553,77,316
gauge12=escj1N1!escj1N1, 1015,451,68,50
gauge13=escj1ap!escj1ap, 361,463,232,62
gauge14=escj1gpws!escj1gpws, 126, 619 ,88,30
gauge15=escj1gpwsgs!escj1gpwsgs, 660,493,29,28
gauge16=escj1cbpanel!escj1cbpanel, 93,470,97,70
gauge17=escj1annunc!escj1annunc, 809,324,373,120
gauge18=escj1clock!escj1clock, 224,489,80,81
gauge19=escj1audio!escj1audio, 83,653,226,92
gauge20=escj1_Tail_Number!Tail_Number, 645,455,61,31
gauge21=escj1_compass!escj1_compass, 939,230,119,60
gauge22=escj1masterwarn!escj1masterwarn, 314,475,47,37
gauge23=escj1mastercaut!escj1mastercaut, 592,474,47,37
gauge24=escj1fastslow!escj1fastslow, 881,285,14,38
gauge25=escj1vf!escj1vf, 62,724,20,19
gauge26=escj1landview!escj1landview, 62,703,21,21
gauge27=escj1simicons!escj1simicons, 1208,455,66,104
gauge28=escj1lower!escj1lower, 313,923,415,132


//--------------------------------------------------------
[Window10]
size_mm=972
window_size_ratio=1.000
position=0
visible=0
ident=110
window_size= 0.755, 0.576
window_pos= 0.245, 0.445

gauge00=escj1pfdclose!escj1pfdclose, 70,68,772,403
gauge01=escj1pfdtop!escj1pfdtop, 44,13,346,250
gauge02=escj1pfdlower!escj1pfdlower, 7,262,394,248
gauge03=escj1pfdset!escj1pfdset, 402,47,93,382
gauge04=escj1buttonsr!escj1buttonsr, 863,349,28,166
gauge05=escj1mfd!escj1mfd, 516,75,372,180
gauge06=escj1mfdlow!escj1mfdlow, 523,255,345,237


//--------------------------------------------------------
[Window11]
Background_color=0,0,0
size_mm=312,414
window_size_ratio=1.000
position=0
visible=0
ident=4002
window_size= 0.242, 0.391
window_pos= 0.560, 0.490

gauge00=isg1!P1000_MFD, -1,-1,312,415,WN


//--------------------------------------------------------
[Window12]
Background_color=0,0,0
size_mm=312,120
window_size_ratio=1.000
position=0
visible=0
ident=4003
window_size= 0.234, 0.115
window_pos= 0.558, 0.883

gauge00=isg1!P1000_MFD_CNTR, 0,-1,312,121


//--------------------------------------------------------
[Window13]
Background_color=0,0,0
size_mm=312,240
window_size_ratio=1.000
position=0
visible=0
ident=4001
window_size= 0.254, 0.160
window_pos= 0.250, 0.840

gauge00=isg1!MCU_LM, 1,-1,312,241


//--------------------------------------------------------
[Vcockpit01]
Background_color=0,0,0
size_mm=1024,1024
visible=0
pixel_size=1024,1024
texture=$vc_main

gauge00=escj1pfdset!escj1pfdset, 901,254,123,498
gauge01=escj1stbyadi!escj1stbyadi, 6,493,245,248
gauge02=escj1stbyaltim!escj1stbyaltim, 248,491,237,244
gauge03=escj1stbyhsi!escj1stbyhsi, 650,496,246
gauge04=escj1aoa!escj1aoa, 5,730,188,194
gauge05=escj1_flourescent!CJ1_flourescent, 217,947,186,59
gauge06=escj1_cabinflood!escj1_cabinflood, 538,853,165,164
gauge07=escj1electric!escj1electric, 0,1,489,483
gauge08=escj1audio!escj1audio, 491,223,417,171
gauge09=escj1lower!escj1lower, 494,3,528,170
gauge10=escj1ap!escj1ap, 498,398,392,88
gauge11=escj1clock!escj1clock, 214,742,183,183
gauge12=escj1masterwarn!escj1masterwarn, 512,649,60,52
gauge13=escj1mastercaut!escj1mastercaut, 575,649,60,52
gauge14=escj1_Tail_Number!Tail_Number, 15, 936 ,137,71
gauge15=escj1gear_VC!escj1gear_VC, 701,757,316,257
gauge16=escj1_domelight!escj1_domelight, 408,755,165
gauge17=escj1N1_vc!escj1N1_vc, 484,497,164,123


//--------------------------------------------------------
[Vcockpit02]
Background_color=0,0,0
size_mm=1024,1024
visible=0
pixel_size=1024,1024
texture=$vc_glass

gauge00=escj1pfdtop!escj1pfdtop, 50,16,434,314
gauge01=escj1pfdlower!escj1pfdlower, 14,330,483,305
gauge02=escj1buttonsr!escj1buttonsr, 989,387,37,217
gauge03=escj1_ice_inspect!CJ1_ice_inspect, 9,603,165,161
gauge04=escj1_pax_safety!CJ1_pax_safety, 187,610,451,180
gauge05=escj1press!escj1press, 577,790,443,232
gauge06=escj1annunc_vc!escj1annunc_VC, 56,786,456,133
gauge07=escj1_Hobbs!hobbs, 642,652,182,87,Eaglesoft Cessna Citation CJ1\CJ1
gauge08=escj1_compass!escj1_compass, 824,633,222,128
gauge09=isg1!P1000_MFD, 526,2,500,599


//--------------------------------------------------------
[Vcockpit03]
Background_color=0,0,0
size_mm=1024,1024
visible=0
pixel_size=1024,1024
texture=$vc_middle

gauge00=escj1_tquad_vc!escj1_tquad_vc, 530,4,488,480
gauge01=escj1radio!escj1radio, 0,3,407,598
gauge02=escj1apcrs_VC!escj1apcrs_VC, 525,537,498,320
gauge03=escj1fastslow!escj1fastslow, 19,608,53,143
gauge04=escj1gpws!escj1gpws, 643,796,201,65
gauge05=escj1gpwsgs!escj1gpwsgs, 565,798,65,61
gauge06=escj1elt!escj1elt, 855,794,161,221
gauge07=escj1right!escj1right, 417,876,429,137
gauge08=escj1o2!escj1o2, 411,657,119,180
gauge09=isg1!SMITHS_FMS, 99,602,300,424



[Color]
Day=255,255,255
Night=32,32,32
Luminous=190,190,190

[Default View]
X=0
Y=0
SIZE_X=8192
SIZE_Y=2924

Thank you!

It looks very, very good.

Altough I am also looking for the performance CFG file, the one that has all the settings for the FMC like climb speed, rates, etc.

-

Thanks again. I will replace my panel.cfg with yours when I get my new computer some rats stole my other one.
